• 18" painted aluminum wheels
• P235/60R18 BSW tires
• Bright stainless steel beltline
• Chrome grille
• Wiper activated auto halogen headlamps
• Fog lamps w/kast silver trim ring
• Black heated folding pwr mirrors
• Rear privacy glass
• Front speed sensitive intermittent wipers
• Rear 2-speed wipers
• Body-color door handles

• AM/FM stereo w/CD player -inc: MP3 capability, auxiliary audio input, (6) speakers
• SIRIUS satellite radio *SIRIUS 6 months programming included where available*

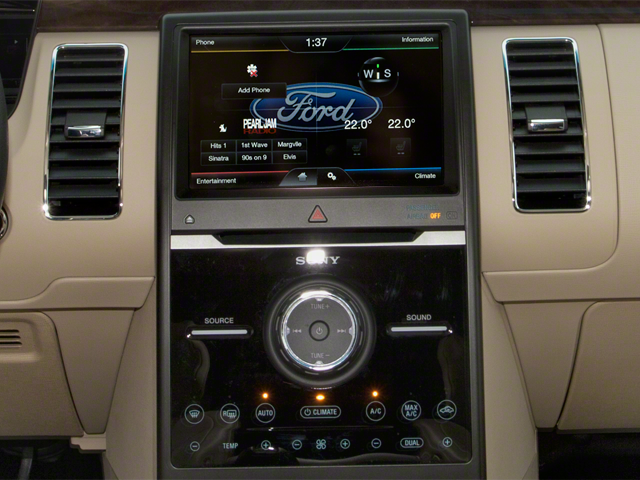

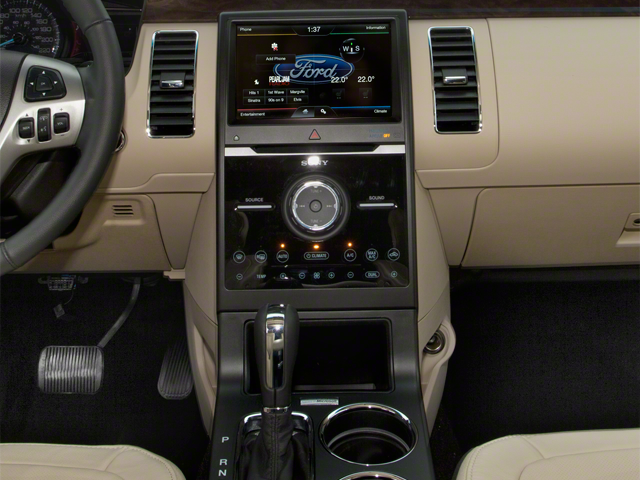

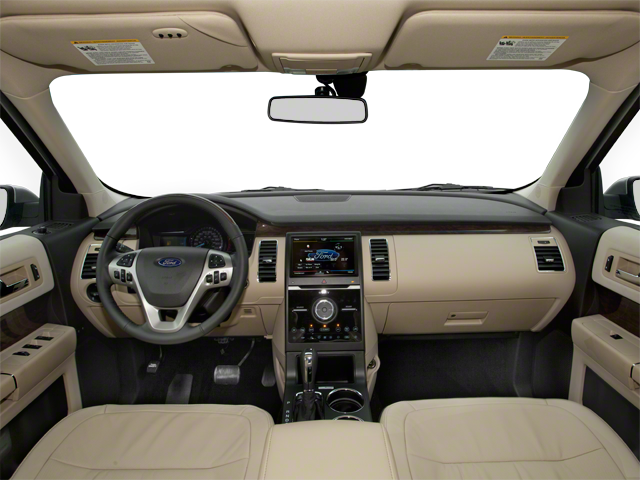

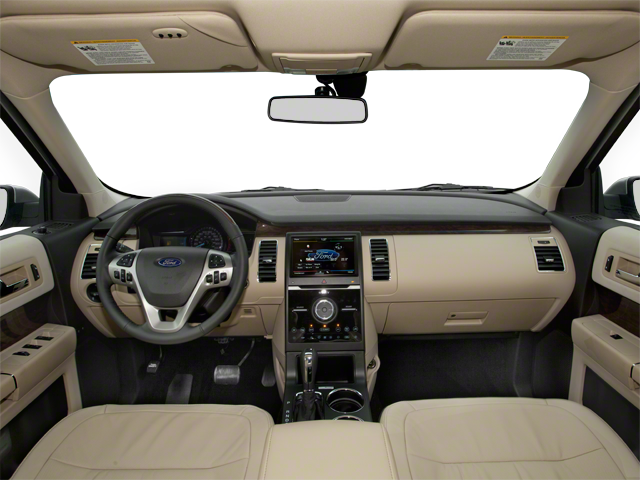

• SYNC w/MyFord Touch -inc: (2) driver configurable 4.2" color LCD display in instrument cluster, 8" LCD touch-screen in center-stack, media hub w/(2) USB ports, SD card reader, A/V input jacks, 5-way steering wheel controls, Bluetooth® capability, steering wheel audio controls, 911 assist, vehicle health report, SYNC services 3-year prepaid subscription w/GPS based turn-by-turn driving directions & traffic reports & info services

• 7-passenger seating
• Heated front cloth bucket seats -inc: 10-way pwr driver seat w/pwr lumbar, 6-way pwr passenger seat w/lumbar

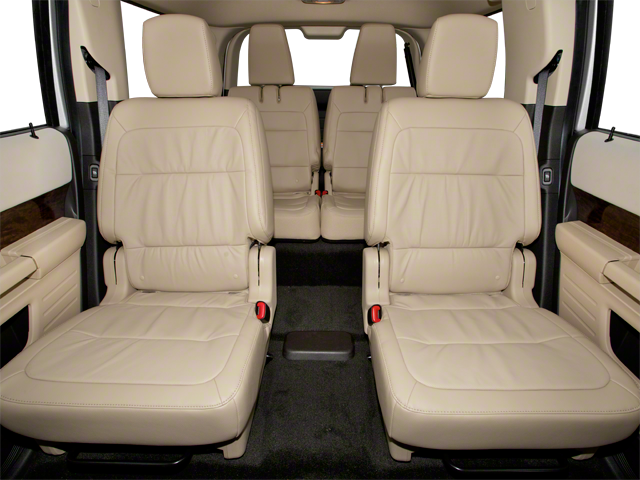

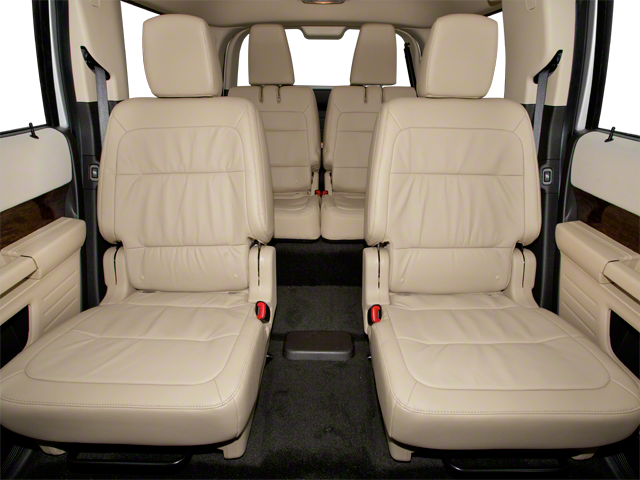

• 2nd row 60/40 split bench seat -inc: autofold feature on passenger "40"
• 3rd row 50/50 fold in floor bench seat
• 4-way adjustable head restraints

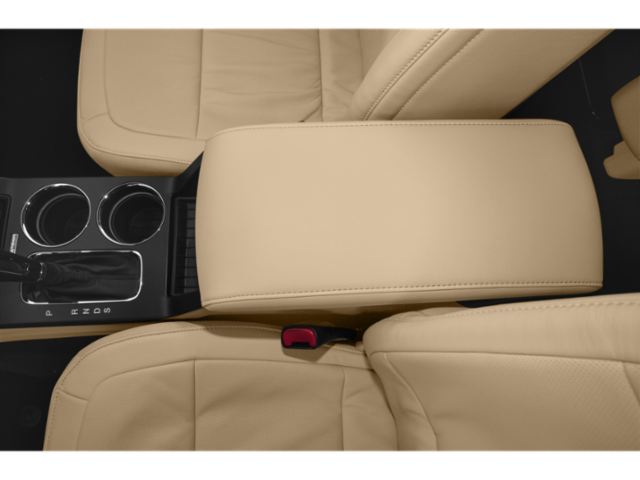

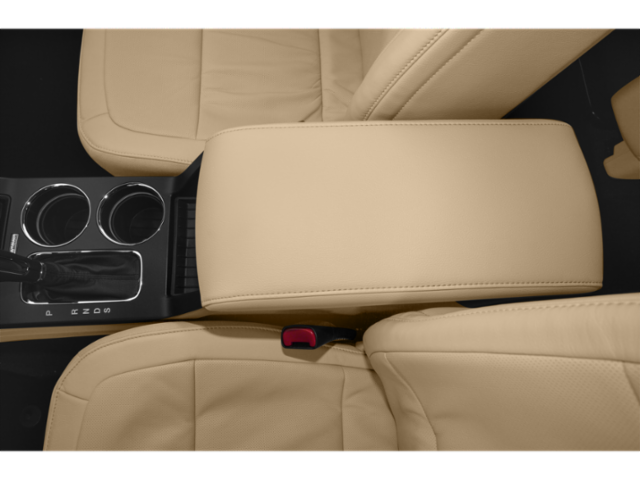

• Front floor console storage bin
• 1st & 2nd row carpeted floor mats
• Manual tilt-adjustable/telescoping steering column

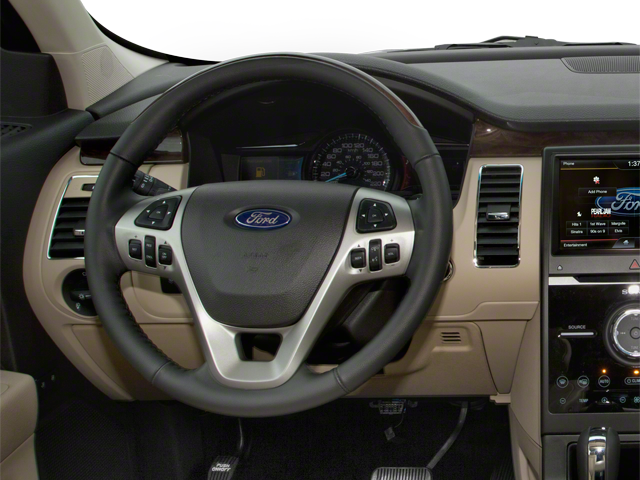

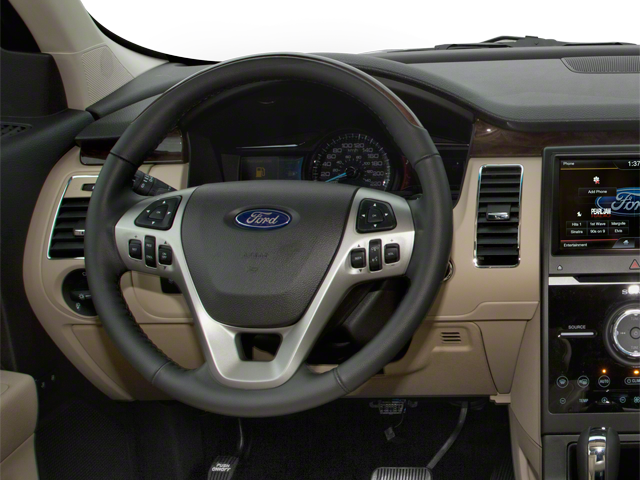

• Leather-wrapped steering wheel -inc: audio controls
• Pwr windows w/driver one-touch up/down
• Accessory pwr delay
• Pwr locks w/autolock
• SecuriCode invisible keyless entry keypad on drivers door
• Remote keyless entry
• Universal garage door opener
• Cruise control w/steering wheel controls
• SecuriLock passive anti-theft system
• Perimeter anti-theft alarm
• Dual-zone electronic auto temp control air conditioning
• Rear A/C vents
• Rear defroster

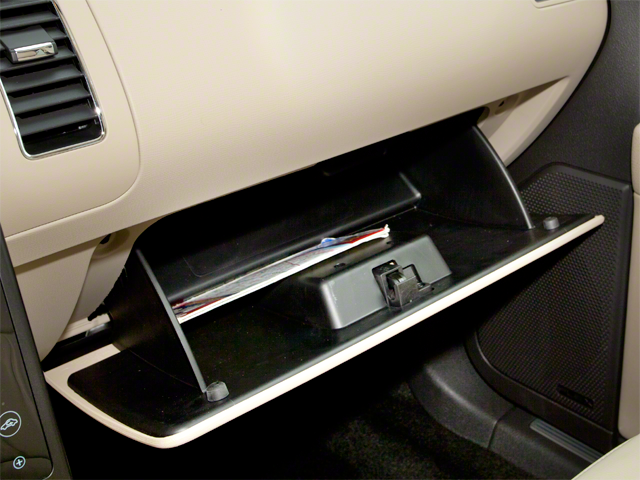

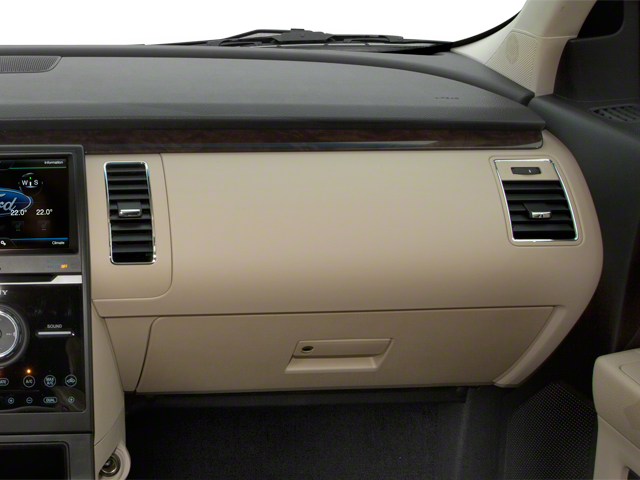

• Locking glove box
• (10) cup holders
• San Maccasar wood appearance IP/door applique
• 1st & 2nd row door storage pockets
• Auto-dimming rearview mirror
• Overhead console w/sunglass holder -inc: map light
• (3) roof grab handles
• 2nd row coat hooks
• Reading lamps for 2nd & 3rd rows
• Leather-wrapped shift knob
• Front seat back map pockets
• (4) 12V pwr outlets
• Driver & front passenger sunvisors w/illuminated mirrors
• Illuminated entry
• Grocery bag hooks in cargo area
• Cargo net

• 4-wheel anti-lock disc brakes
• Advance Trac w/roll stability control (RSC)
• Dual front airbags w/Personal Safety System
• Passenger sensing system
• Side-impact airbags
• 2nd/3rd row Safety Canopy w/rollover sensor
• Reverse sensing system
• SOS Post-Crash Alert System
• MyKey system -inc: top speed limiter, audio volume limiter, early low fuel warning, programmable sound chimes, Beltminder w/audio mute
• Rear child safety locks
• Rear seat lower anchors & tethers for children (LATCH)
• Tire pressure monitoring system

3.5L TI-VCT V6 ENGINE

• (STD)

• 43P

• Vehicle
• EPA Classification: 4WD Sport Utility Vehicle
• Mileage
• Fuel Economy Est-Combined (MPG): 18
• EPA Fuel Economy Est - City (MPG): 16
• EPA Fuel Economy Est - Hwy (MPG): 23
• Electrical
• Cold Cranking Amps @ 0° F (Primary): - TBD -
• Maximum Alternator Capacity (amps): - TBD -
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Base Curb Weight (lbs): 4643
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 2000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 200
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 2000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 200
• Suspension
• Suspension Type - Front: MacPherson strut
• Suspension Type - Rear: Multi-link
• Suspension Type - Front (Cont.): w/Coil Springs
• Suspension Type - Rear (Cont.): w/Coil Springs
• Shock Absorber Diameter - Front (mm): N/A
• Shock Absorber Diameter - Rear (mm): N/A
• Stabilizer Bar Diameter - Front (in): 1.259
• Stabilizer Bar Diameter - Rear (in): 0.866
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.800 x - TBD -
• Rear Brake Rotor Diam x Thickness (in): 13.000 x - TBD -
• Tires
• Front Tire Order Code: N/A
• Rear Tire Order Code: N/A
• Spare Tire Order Code: N/A
• Front Tire Size: P235/60R18
• Rear Tire Size: P235/60R18
• Spare Tire Size: Compact
• Wheels
• Front Wheel Size (in): 18 x - TBD -
• Rear Wheel Size (in): 18 x - TBD -
• Spare Wheel Size (in): Compact
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: - TBD -
• Steering
• Steering Type: Pwr Rack & Pinion
• Steering Ratio (:1), Overall: 17.000
• Lock to Lock Turns (Steering): - TBD -
• Turning Diameter - Curb to Curb (ft): 40.700
• Turning Diameter - Wall to Wall (ft): N/A
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 18.600
• Exterior Dimensions
• Wheelbase (in): 117.900
• Length, Overall (in): 201.800
• Width, Max w/o mirrors (in): 75.900
• Height, Overall (in): 68.000
• Track Width, Front (in): 65.400
• Track Width, Rear (in): 65.400
• Min Ground Clearance (in): - TBD -
• Rear Door Opening Height (in): - TBD -
• Rear Door Opening Width (in): - TBD -
• Liftover Height (in): - TBD -
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Seat 1 (in): - TBD -
• Cargo Area Length @ Floor to Seat 2 (in): - TBD -
• Cargo Area Length @ Floor to Seat 3 (in): - TBD -
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): - TBD -
• Cargo Box (Area) Height (in): - TBD -
• Cargo Volume to Seat 1 (ft³): 83.200
• Cargo Volume to Seat 2 (ft³): 43.200
• Cargo Volume to Seat 3 (ft³): 20.000
• Interior Dimensions
• Passenger Capacity: 7
• Passenger Volume (ft³): 155.8
• Front Head Room (in): 41.800
• Front Leg Room (in): 40.800
• Front Shoulder Room (in): 58.400
• Front Hip Room (in): 55.500
• Second Head Room (in): 40.500
• Second Leg Room (in): 44.300
• Second Shoulder Room (in): 58.100
• Second Hip Room (in): 55.000
• Third Head Room (in): 38.700
• Third Leg Room (in): 33.300
• Third Shoulder Room (in): 50.800
• Third Hip Room (in): 41.100
• Summary

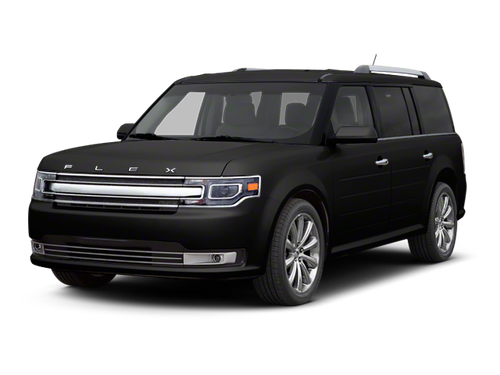

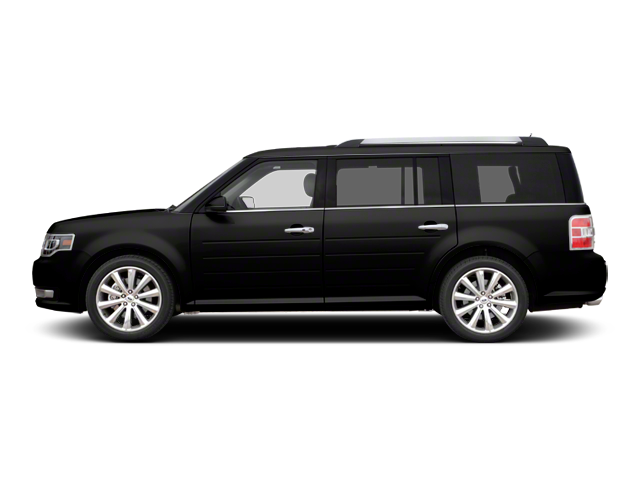

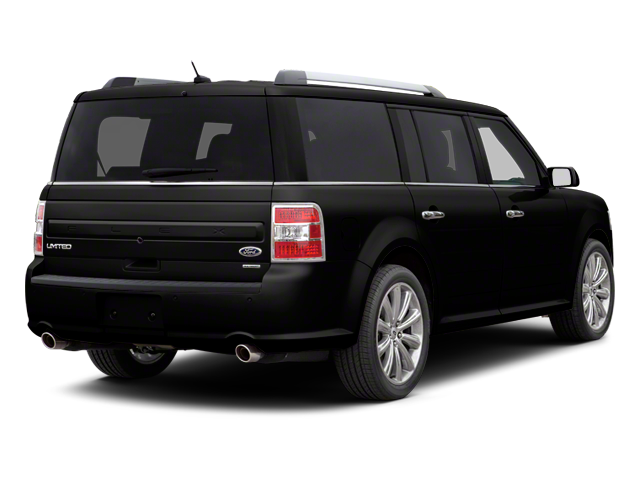

• Vehicle Name: Ford Flex
• Body Style: 4 Door
• Emissions
• EPA Greenhouse Gas Score: 3 (2012)
• Tons/yr of CO2 Emissions @ 15K mi/year: 10.2
